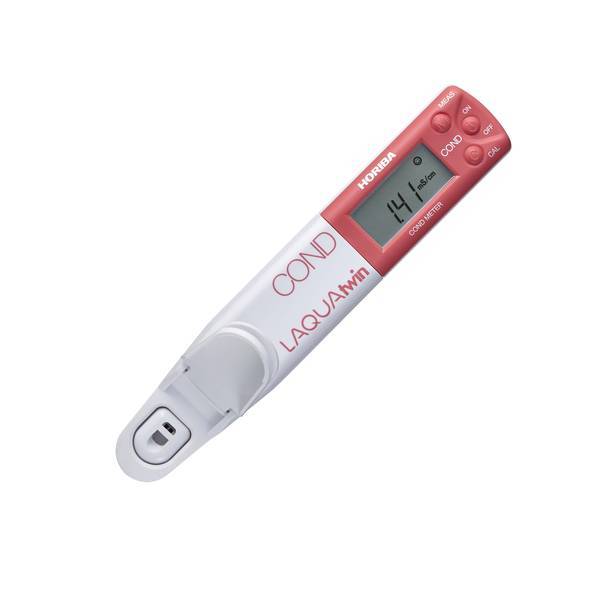

LAQUAtwin EC 11

View PDF brochure for LAQUAtwin EC 11

LAQUAtwin EC 11

Part Code: 3999960125

$209.00

Calculate Shipping

  • Waterproof IP67
  • Replaceable sensor
  • Auto Stable or Auto Hold measurement
  • Automatic temperature compensation
  • Auto buffer recognition
  • Auto power off (30 mins)
  • 2x CR2032 Li battery: 400 hours life
  • Packed in handy carrying case
  • Supplied with required calibration solutions
  • Material: ABS, Epoxy
  • Display: Custom monochrome LCD
  • Operating conditions: 5 to 40C; 85% humidity
  • Warranty: 2 years on meter; 6 months on sensor



Specifications

Model B-771
Measurement principle 2 AC bipolar
Minimum sample volume 0.12 mL or more
Measurement range Conductivity: 0 to 19.9 mS/cm (0 to 1.99 S/m)
Salt: 0 to 1.1%
TDS: 0 to 9900 ppm
Display range*1 0 to 199 mS/cm (0 to 19.9 S/m)
Range and Resolution 1) 0 to 199 mS/cm : 1 mS/cm
2) 0.20 to 1.99 mS/cm : 0.01 mS/cm
3) 2.0 to 19.9 mS/cm : 0.1 mS/cm
4) 20 to 199 mS/cm : 1 mS/cm
Calibration Two-point*2
Accuracy*3 1digit (for each range)*4
Functions Salt/TDS Measurement Auto range change
Temperature conversion (fixed)
IP67 Water/Dust proof*5 Auto hold
Automatic power off (15 minutes)
Display Custom (monochrome) digital LCD
Operating temperature/ humidity 5 to 40C, 85% or less in
relative humidity (no condensation)
Power CR2032 batteries (x2)
Battery life Approx. 400 hours in continuous use
Main Material ABS epoxy
Dimensions /Mass 164 mm 29 mm
20 mm (excluding projections) / Approx.
45 g (meter only, without batteries)

*1 The display value flashes when out of the range.
*2 Selectable between one-point and two-point calibrations. High conductivity standard solution (12.9 mS/cm) is sold separately.
*3 Repeatability in measurement of a standard solution after calibration.
*4 1)5 mS/cm (0 to 199 mS/cm ) 2) 0.05 mS/cm (0.20 to 1.99 mS/cm) 3) 0.5 mS/cm (2.0 to 19.9 mS/cm) 4) 0.5 mS/cm (20 to 199 mS/cm)
*5 IP67: no failure when immersed in water at a depth of 1 meter for 30 minutes. But the product can not be used underwater.

(3999960125)

SKU 3999960125
Brand Horiba
Shipping Weight 0.4500kg
Shipping Width 0.185m
Shipping Height 0.030m
Shipping Length 0.105m
Unit Of Measure each
